Understanding RS-485

1. What Exactly Is RS-485?

Ever wondered how devices in industrial settings manage to chat with each other across longer distances without everything turning into a garbled mess? Chances are, RS-485 is playing a key role. Think of it as the unsung hero of factory floors, building automation systems, and even some point-of-sale setups. It's designed for robust, reliable communication where noise and distance might otherwise cause havoc.

RS-485 isn't a protocol in itself, like Modbus or Profibus, but rather a hardware layer specification. It defines the electrical characteristics of the communication lines. This means it dictates the voltage levels and impedance that devices must adhere to when sending and receiving data. Its like setting the rules for a polite conversation so everyone understands each other, even when they're shouting from opposite ends of a noisy room!

The magic lies in its differential signaling. Instead of sending a single voltage level to represent a '1' or a '0', RS-485 sends two voltage levels on two separate wires. The difference between these voltages determines whether the signal is a '1' or a '0'. This clever trick makes it incredibly resilient to noise, as any interference tends to affect both wires equally, leaving the voltage difference relatively unchanged. It's like wearing noise-canceling headphones — the background noise is still there, but you hear your music (or data) crystal clear.

Because of this noise immunity and ability to support multiple devices on a single bus, RS-485 is a favorite for applications where reliability and long-distance communication are paramount. It's far more robust than its cousin, RS-232, which is typically limited to shorter distances and point-to-point connections.

Miran RS485 Digital Signal To Analog Converter Module

Is RS-485 Digital or Analog? Unveiling the Truth

2. Decoding the Signal Type

Now for the million-dollar question: Is RS-485 digital or analog ? The answer, in short, is digital. However, it's important to understand why it's digital and not get bogged down in potential confusion about the voltage levels involved.

Even though RS-485 uses varying voltage levels to transmit data, the information itself is encoded as discrete values—binary '1s' and '0s'. It's not transmitting a continuously varying signal that represents, say, temperature or pressure directly as an analog voltage. Instead, it's sending digital data that represents those measurements, or commands, or any other kind of information that can be expressed digitally.

Think of it like Morse code. The dots and dashes are different lengths of sound (analog in nature), but they represent letters and numbers (digital information). RS-485 is similar. The voltage levels are the medium, and the digital data is the message. The driver circuits switch between two defined voltage states to represent these digital bits. The receiver then interprets these voltage differences to reconstruct the original digital data stream.

Therefore, while there is an analog component (the voltage levels), the essence of RS-485 communication is decidedly digital. It's all about transmitting those 1s and 0s reliably across a network.

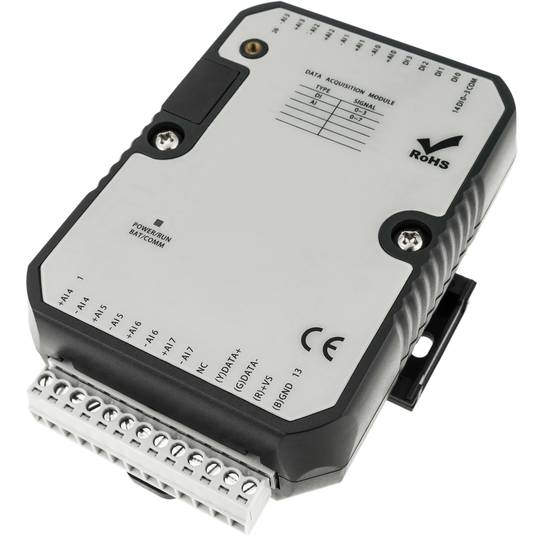

RS485 Modbus I / O Module 8 Analog Inputs And Outputs 4 Digital

How RS-485 Actually Transmits Data

3. Delving Deeper into the Mechanics

Okay, so we know RS-485 is digital, but how does it actually shuffle those digital bits around? It all boils down to those differential voltage levels we mentioned earlier.

An RS-485 driver (the transmitter) doesn't send a single voltage signal. Instead, it sends two signals on two wires, typically labeled 'A' and 'B'. These signals are complementary, meaning that when one is high, the other is low, and vice versa. The receiver then looks at the difference between the voltage on wire A and the voltage on wire B to determine whether a '1' or a '0' was sent.

For example, let's say a '1' is represented by wire A being +5V and wire B being -5V. The voltage difference is +10V. Conversely, a '0' might be represented by wire A being -5V and wire B being +5V, resulting in a voltage difference of -10V. The receiver interprets these voltage differences, not the absolute voltages on each wire, to reconstruct the digital data.

This differential signaling is what gives RS-485 its robustness. Common-mode noise, which affects both wires equally, cancels itself out when the receiver calculates the voltage difference. This means that even in electrically noisy environments, the data can be transmitted reliably. It's like a secret handshake that only those in the know can understand, regardless of the surrounding chaos.

RS232/RS485 Input To 420mA/020mA/05V/010V/15V Analog Signal Output

Benefits of Using RS-485

4. Why Choose RS-485?

So, with all these other communication protocols out there, why would you choose RS-485? Well, it boasts several key advantages that make it a popular choice for many industrial and commercial applications.

First and foremost is its noise immunity. The differential signaling makes it far more resistant to electrical noise than single-ended protocols like RS-232. This is crucial in environments with machinery, power lines, and other sources of interference. If you need reliable communication in a challenging environment, RS-485 is a strong contender.

Secondly, RS-485 supports long-distance communication. While the exact distance depends on the data rate and cable quality, it can typically transmit data over distances of up to 4000 feet (1200 meters). This makes it ideal for connecting devices spread across a large factory floor or a building automation system.

Thirdly, RS-485 supports multi-drop configurations. This means that multiple devices can be connected to the same communication bus, sharing the same wires. This simplifies wiring and reduces the cost of implementation. Imagine a network of sensors all communicating with a central controller over a single cable—that's the power of multi-drop.

Finally, RS-485 is relatively inexpensive and easy to implement. The hardware components are readily available, and the protocol itself is well-defined and understood. This makes it a cost-effective solution for many applications.

DAT3024 MODBUS Converter RS485 To Analog

Common Applications of RS-485

5. Where Does RS-485 Shine?

RS-485 is a versatile communication standard found in a wide range of applications. Its robustness and ability to handle long distances make it well-suited for challenging environments.

One common application is in industrial automation. RS-485 is used to connect sensors, actuators, and controllers in manufacturing plants, allowing them to communicate and coordinate their actions. Imagine robots, conveyor belts, and quality control systems all working together seamlessly, thanks to RS-485.

Building automation systems also rely heavily on RS-485. It's used to control lighting, HVAC (heating, ventilation, and air conditioning), and security systems. This allows for centralized monitoring and control of building systems, improving energy efficiency and security.

Point-of-sale (POS) systems often use RS-485 to connect cash registers, barcode scanners, and other peripherals. This provides a reliable and cost-effective way to transmit data between these devices. You might not even realize it, but RS-485 is likely helping you make your purchases at your favorite store!

Even in the renewable energy sector, RS-485 plays a role. It's used in solar power systems to monitor and control inverters, which convert the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity that can be used by homes and businesses. Think of it as the silent guardian of your solar energy setup.

WP8027ADAM Módulo I/O RS485 MODBUS RTU 16 Saídas Digitais

Frequently Asked Questions (FAQs)

6. Your RS-485 Questions Answered

Still got some lingering questions about RS-485? Let's tackle some common queries.

Q: What's the maximum data rate for RS-485?

A: The maximum data rate depends on several factors, including the cable length and the number of devices on the bus. However, it can typically reach up to 10 Mbps (megabits per second) over shorter distances.

Q: Do I need termination resistors for RS-485?

A: Yes, termination resistors are essential for reliable RS-485 communication, especially at higher data rates or over longer distances. They help to prevent signal reflections, which can cause errors. Typically, you'll want 120-ohm resistors at each end of the bus.

Q: Can I use RS-485 with different protocols, like Modbus?

A: Absolutely! RS-485 is just the physical layer. Protocols like Modbus, Profibus, and others can be implemented on top of RS-485 to define the data format and communication rules. This makes RS-485 incredibly flexible.

Q: What are the common problems with RS-485?

A: Common problems include incorrect termination, wiring errors (like reversed A and B wires), exceeding the maximum cable length or number of devices, and ground loops. Troubleshooting these issues often involves checking the wiring, verifying termination resistors, and using an oscilloscope to analyze the signals.
